Leaf Blowers

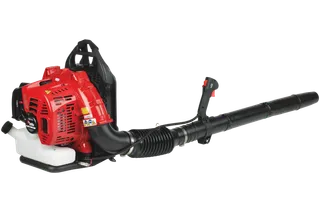

RedMax EBZ5150RH




3.06 cu.inch
Cylinder displacement
434.37 cfm
Air flow in pipe
22.3 lbs
Weight







EBZ5150RH

For the commercial operator, RedMax is easily the industry leader in terms of the selection and performance of power blowers. The EBZ5150RH backpack blower features the Strato-Charged 2-stroke engine with ultra-low emissions and high power. With a 50.2 cc displacement and 2.3 horsepower, the EBZ5150RH produces a maximum air speed of 171 MPH with tube air flow approaching 487 CFM. The Max Cooled back pad uses air from the fan housing to cool operators and keep them comfortable during hot days. Super wide straps and contoured back pad are oversized for greater comfort. The RH model has a tube mounted throttle for added comfort and convenience.

Features
Specifications

EBZ5150RH - CARB Compliant

Article Number: 966 35 84‑01

Engine
EBZ5150RH - CARB Compliant
Article Number: 966 35 84‑01
Cylinder displacement3.06 cu.inch
Electrode gap0.03 in
Power output2.3 hp
Fuel consumption455 g/kWh
Fuel tank volume70.9 fl oz
Idling speed2,200 rpm
Maximum power speed6,300 rpm
Spark PlugTORCH AC7R, NGK CMR7H
Capacity
Air flow in pipe434.37 cfm
Air flow in housing692.17 cfm
Air speed214.75 mph
Air speed (round nozzle)216 mph
Blowing Force20 N
Dimensions
Product size height19.4 in
Product size length15.8 in
Tube diameter2.24 in
Weight22.3 lbs
Sound and noise
Sound power level, measured71 dB(A)
Sound pressure level at operators ear89 dB(A)
Owner support
Manuals, handbooks, spare parts, guides, and related information for EBZ5150RH can be found in the product support.
Product support for EBZ5150RH
