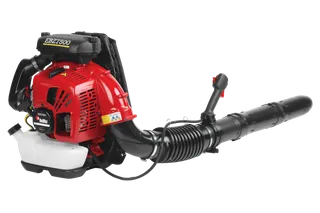

EBZ7500RH
For the commercial operator, RedMax is easily the industry leader in terms of the selection and performance of power blowers. The EBZ7500 backpack blower features the Strato-Charged 2-stroke engine with ultra-low emissions and high power. With a 65.6 cc displacement and 3.9 horsepower, the EBZ7500 produces a maximum air speed of 236 MPH with tube air flow approaching 770 CFM. The Max Cooled back pad uses air sucked by the fan housing to cool operators and keep them comfortable during hot days. Wide straps and contoured back pad are oversized for greater comfort. For added comfort and convenience, the machine is designed with a tube mounted throttle.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareBLOWER EBZ7500RH 966 70 99‑01 | |
|---|---|
Engine | |
Cylinder displacement | 4 cu.inch |
Electrode gap | 0.03 in |
Output shaft power | 3.75 hp |
Fuel Consumption | 431 g/kWh |
Fuel tank volume | 71.01 fl oz |
Idling speed | 2,000 rpm |
Maximum power speed | 7,200 rpm |
Spark Plug | NGK CMR7H |
BLOWER EBZ7500RH 966 70 99‑01 | |
|---|---|
Capacity | |
Air flow in pipe | 768 cfm |
Air flow in housing | 972 cfm |
Air speed (round nozzle) | 236 mph |
Blowing Force | 37 N |
Air speed (flat nozzle) | 202 mph |
BLOWER EBZ7500RH 966 70 99‑01 | |
|---|---|
Dimensions | |
Product size height | 19.7 in |
Product size length | 14 in |
Tube diameter | 2.83 in |
Weight | 23.6 lbs |
BLOWER EBZ7500RH 966 70 99‑01 | |
|---|---|
Sound and noise | |
Sound power level, measured | 112 dB(A) |
Sound pressure level at operators ear (LpA) | 103 dB(A) |
