Trimmers

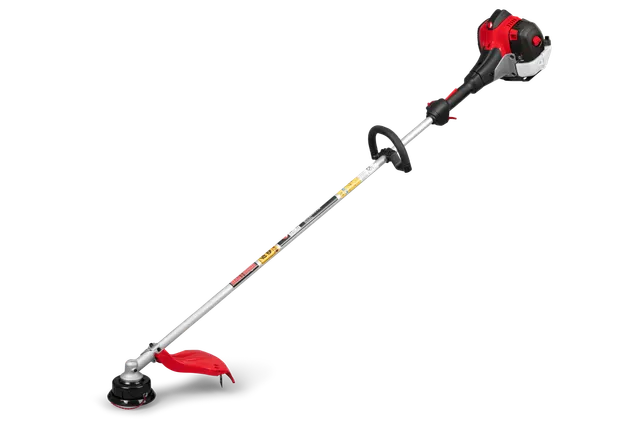

Parts, manuals and support for BCZ265TS
All the support you need for BCZ265TS. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to BCZ265TS product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
ACCESSORIES
Article
Art. number
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax BCZ265TS. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
BCZ265TS 970 44 70‑01 | |
|---|---|
Engine | |
Cylinder displacement | 1.55 cu.inch |
Clutch engagement speed (±120) | 4,000 rpm |
Electrode gap | 0.02 in |
Fuel Consumption | 600 g/kWh |
Fuel tank volume | 21.98 fl oz (US) |
Fuel tank volume | 0.65 l |
Idling speed | 3,000 rpm |
Maximum rpm output shaft | 5,500 rpm |
Output shaft power | 1.34 hp |
Spark Plug | Husqvarna HQT-2 |
Torque, max. | 1.2 Nm |
Torque, max. at rpm | 6,000 rpm |
BCZ265TS 970 44 70‑01 | |
|---|---|
Product data | |
Drive gear angle | 30 ° |
Gear ratio | 23 |
BCZ265TS 970 44 70‑01 | |
|---|---|
Sound and noise | |
Sound power level, guaranteed (LWA) | 114 dB(A) |
Sound pressure level at operators ear | 98 dB(A) |
BCZ265TS 970 44 70‑01 | |
|---|---|
Dimensions | |
Weight (excl. cutting equipment) | 10.58 lbs |
