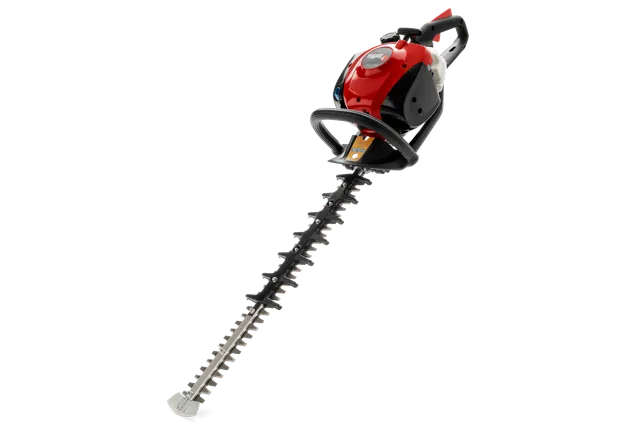

Side view of a hedge trimmer with a long cutting blade.

Hedge trimmers

Parts, manuals and support for CHTZ600

All the support you need for CHTZ600. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to CHTZ600 product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

STARTER
Choose your preferred view type for the spare parts
Skip drawning
STARTERipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-area
Article
Art. number






Support content

Manuals & Documents

(2)
Showing the latest version of manual and documents for RedMax CHTZ600. For earlier versions, see link below to search all manuals & documents.

Specifications

CHTZ600 HEDGE TRIMMER
967 65 95‑01
Engine

Cylinder displacement

1.3 cu.inch

Electrode gap

0.02 in

Fuel tank volume

15.2 fl oz

Idling speed

3,000 rpm

Maximum power speed

7,800 rpm

Output shaft power

0.8 hp

Spark Plug

NGK CMR6A
CHTZ600 HEDGE TRIMMER
967 65 95‑01
Capacity

Cutting speed

4,400 cut/min
CHTZ600 HEDGE TRIMMER
967 65 95‑01
Vibration

Equivalent vibration level (ahv, eq) front handle

2.7 m/s²

Equivalent vibration level (ahv, eq) rear handle

1.2 m/s²
CHTZ600 HEDGE TRIMMER
967 65 95‑01
Equipment

Knife length

24 in
CHTZ600 HEDGE TRIMMER
967 65 95‑01
Sound and noise

Sound power level, guaranteed (LWA)

102 dB(A)

Sound pressure level at operators ear

93 dB(A)
CHTZ600 HEDGE TRIMMER
967 65 95‑01
Dimensions

Weight

10.8 lbs
