Zero Turn Mowers

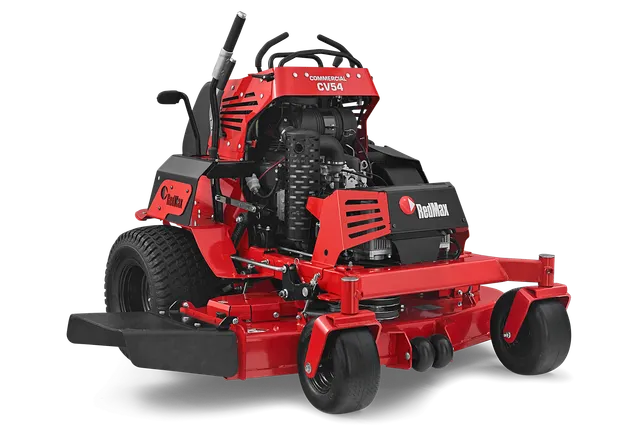

Parts, manuals and support for CV54
All the support you need for CV54. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
ENGINE PLATE
Article
Art. number
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax CV54. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
CV54 ZERO TURN 2023 CV54 970 65 90‑01 | |
|---|---|
Engine | |
Cylinder displacement | 52 cu.inch |
Cylinders | 2 |
Engine lubrication type | Full pressure with oil filter |
Engine name | FX Series |
Fuel tank location | Side (Single) |
Fuel tank volume (with reserve) | 7 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
CV54 ZERO TURN 2023 CV54 970 65 90‑01 | |
|---|---|
Equipment | |
Cup holder | No |
Seat spring | No |
CV54 ZERO TURN 2023 CV54 970 65 90‑01 | |
|---|---|
Cutting deck | |
Anti-scalp wheels | 3 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 54 in |
Deck thickness | 7 gauge |
CV54 ZERO TURN 2023 CV54 970 65 90‑01 | |
|---|---|
Capacity | |
Speed forward max | 10 mph |
CV54 ZERO TURN 2023 CV54 970 65 90‑01 | |
|---|---|
Drive system | |
Transmission Brand | Parker |
Transmission model | HP1/DL |
CV54 ZERO TURN 2023 CV54 970 65 90‑01 | |
|---|---|
Dimensions | |
Base machine, height | 48 in |
Base machine, length | 57 in |
Base machine, width | 47 in |
Weight | 1,176 lbs |
