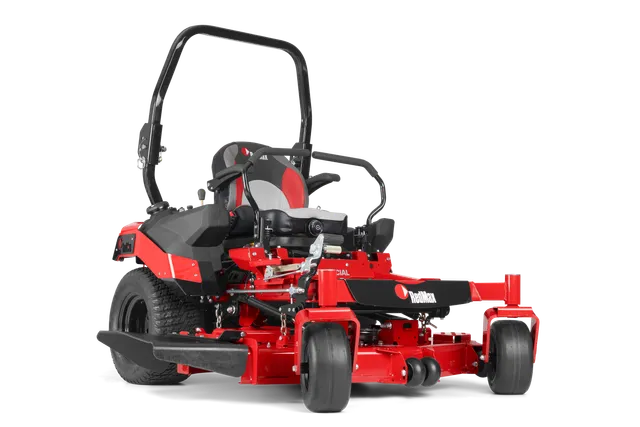

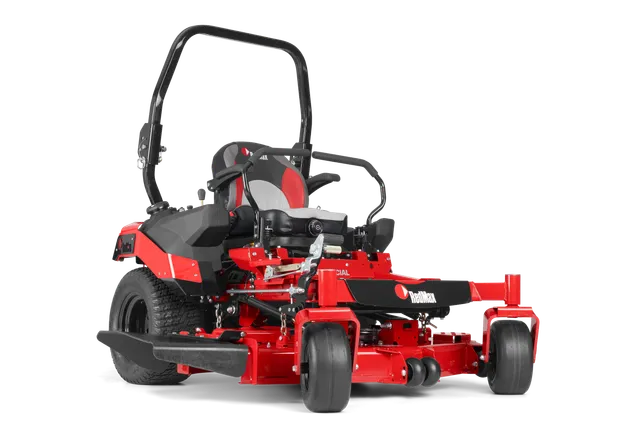

RedMax CZTX 3/4 Front - Right

Parts, manuals and support for CZT54x

All the support you need for CZT54x. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Manuals & Documents
Showing the latest version of manual and documents for RedMax CZT54x. For earlier versions, see link below to search all manuals & documents.

2021 model, ZT-5400 Drive

Art no: 970 49 76‑01

2021 model, ZT-5400 Drive
Art no: 970 49 76‑01
Cylinder displacement52 cu.inch
Engine coolingAir
Engine lubrication typeFull pressure with oil filter
Engine nameFX Series
Fuel tank locationSide (Dual)
Fuel tank volume (with reserve)11 gal (US)
Motor/engine manufacturerKawasaki
Power/fuel typeGasoline
Cup holderYes
Seat back heightHigh
Seat springYes
Seat typePremium, suspension
Cutting deck
Anti-scalp wheels4
Blade engagementElectric clutch
Blades3 pcs
Cutting deck materialSteel
Cutting deck type7-gauge fabricated
Cutting methodsCollect/Mulch/Side discharge
Cutting width54 in
Deck thickness7 gauge
Speed forward max11 mph
Speed forward min0 mph
Drive system
Fan-cooled pumpsYes
Transmission manufacturerHydro-Gear
Transmission modelZT 5400
Tire size, front Diameter13 in
Tire size, front Width6.5 in
Base machine, height46 in
Base machine, length81 in
Base machine, width53.5 in
Weight1,283 lbs
