Zero Turn Mowers

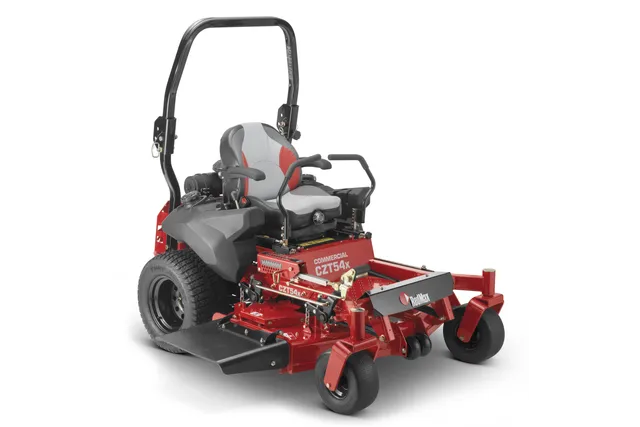

Parts, manuals and support for CZT54x
All the support you need for CZT54x. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
PARKING BRAKE
Article
Art. number
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax CZT54x. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
2020 Model, Pump and Motor drive 967 67 17‑01 | |
|---|---|
Engine | |
Cylinder displacement | 52 cu.inch |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure |
Engine name | FX Series |
Fuel tank location | Side (Dual) |
Fuel tank volume (with reserve) | 11 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
2020 Model, Pump and Motor drive 967 67 17‑01 | |
|---|---|
Equipment | |
Cup holder | Yes |
Seat back height | High |
Seat spring | Yes |
Seat type | Professional, suspension |
2020 Model, Pump and Motor drive 967 67 17‑01 | |
|---|---|
Cutting deck | |
Anti-scalp wheels | 3 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 54 in |
Deck thickness | 7 gauge |
2020 Model, Pump and Motor drive 967 67 17‑01 | |
|---|---|
Capacity | |
Speed forward max | 11 mph |
Speed forward min | 0 mph |
2020 Model, Pump and Motor drive 967 67 17‑01 | |
|---|---|
Drive system | |
Fan-cooled pumps | Yes |
Transmission Brand | Hydro-Gear/Parker |
Transmission model | PR/TL |
2020 Model, Pump and Motor drive 967 67 17‑01 | |
|---|---|
Dimensions | |
Tire size, front Diameter | 13 in |
Tire size, front Width | 6.5 in |
Base machine, height | 47.5 in |
Base machine, length | 82.5 in |
Base machine, width | 53.5 in |
Weight | 1,260 lbs |
