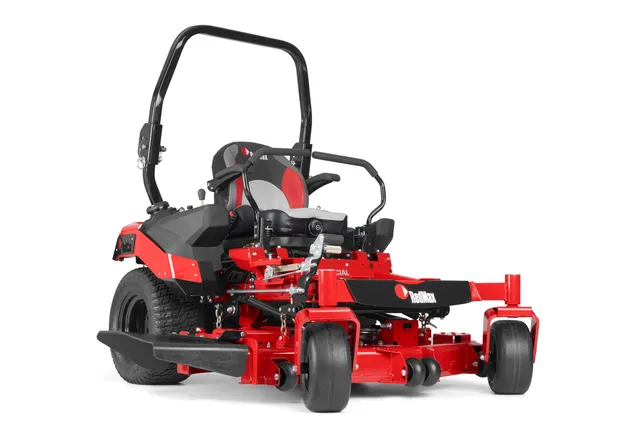

Zero Turn Mowers
Parts, manuals and support for CZT60x
All the support you need for CZT60x. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to CZT60x product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
HYDRAULIC PUMP - MOTOR
Article
Art. number
Support content
Manuals & Documents
(3)
Manuals & Documents
(3)
Showing the latest version of manual and documents for RedMax CZT60x. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
CZT60X ZERO TURN 970 49 75‑01 | |
|---|---|
Engine | |
Cylinder displacement | 52 cu.inch |
Cylinders | 2 |
Engine lubrication type | Full pressure with oil filter |
Engine name | FX Series V-Twin |
Fuel tank location | Side (Dual) |
Fuel tank volume (with reserve) | 10 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
CZT60X ZERO TURN 970 49 75‑01 | |
|---|---|
Equipment | |
Cup holder | Yes |
Seat back height | High |
Seat spring | No |
Seat type | Premium, suspension |
CZT60X ZERO TURN 970 49 75‑01 | |
|---|---|
Cutting deck | |
Anti-scalp wheels | 6 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 60 in |
Deck thickness | 7 gauge |
CZT60X ZERO TURN 970 49 75‑01 | |
|---|---|
Capacity | |
Speed forward max | 12 mph |
CZT60X ZERO TURN 970 49 75‑01 | |
|---|---|
Drive system | |
Transmission Brand | Hydro-Gear |
Transmission model | ZT 5400 |
CZT60X ZERO TURN 970 49 75‑01 | |
|---|---|
Dimensions | |
Base machine, height | 46 in |
Base machine, length | 81 in |
Base machine, width | 53.5 in |
Weight | 1,320 lbs |
