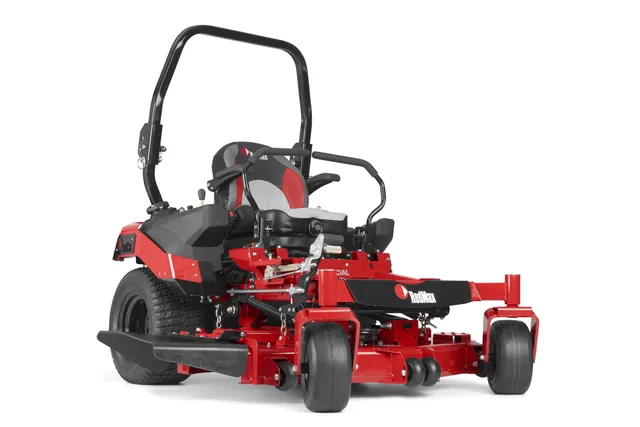

Parts, manuals and support for CZT72x
All the support you need for CZT72x. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax CZT72x. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
2021 Model, ZT-5400 Drive 970 49 74‑01 | |
|---|---|
Engine | |
Cylinder displacement | 61 cu.inch |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure with oil filter |
Engine name | FX Series V-Twin |
Fuel tank location | Side (Dual) |
Fuel tank volume (with reserve) | 10 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Petrol |
2021 Model, ZT-5400 Drive 970 49 74‑01 | |
|---|---|
Equipment | |
Cup holder | Yes |
Seat back height | High |
Seat spring | No |
Seat type | Premium, suspension |
2021 Model, ZT-5400 Drive 970 49 74‑01 | |
|---|---|
Cutting deck | |
Anti-scalp wheels | 6 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Mulching/Side discharge |
Cutting width | 72 in |
Deck thickness | 7 gauge |
2021 Model, ZT-5400 Drive 970 49 74‑01 | |
|---|---|
Capacity | |
Speed forward max | 12 mph |
2021 Model, ZT-5400 Drive 970 49 74‑01 | |
|---|---|
Drive system | |
Transmission manufacturer | Hydro-Gear |
Transmission model | ZT 5400 |
2021 Model, ZT-5400 Drive 970 49 74‑01 | |
|---|---|
Dimensions | |
Base machine, height | 46 in |
Base machine, length | 81 in |
Base machine, width | 53.5 in |
Weight | 1,359 lbs |
