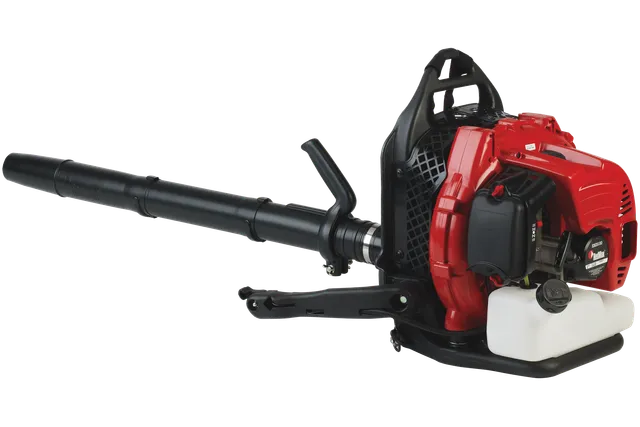

EBZ5150 - Left View

Parts, manuals and support for EBZ5150

All the support you need for EBZ5150. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax EBZ5150. For earlier versions, see link below to search all manuals & documents.
Specifications

EBZ5150

Art no: 966 35 83‑01

Engine
EBZ5150
Art no: 966 35 83‑01
Cylinder displacement3.06 cu.inch
Electrode gap0.03 in
Power output2.15 hp
Fuel consumption455 g/kWh
Fuel tank volume70.9 fl oz
Idling speed2,200 rpm
Maximum power speed6,300 rpm
Spark PlugTorch AC7R, NGK CMR7H
Capacity
Air flow in pipe435 cfm
Air flow in housing692.17 cfm
Air speed214.75 mph
Air speed (round nozzle)216 mph
Blowing Force20 N
Dimensions
Product size height19.4 in
Product size length15.8 in
Tube diameter2.24 in
Weight22.7 lbs
Sound and noise
Sound power level, measured104 dB(A)
Sound pressure level at operators ear89 dB(A)
