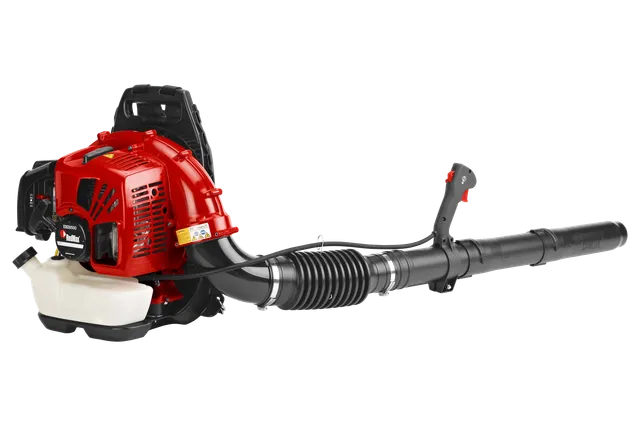

Side view of a leaf blower with ergonomic handle and fuel tank.

Leaf Blowers

Parts, manuals and support for EBZ6500RH

All the support you need for EBZ6500RH. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to EBZ6500RH product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

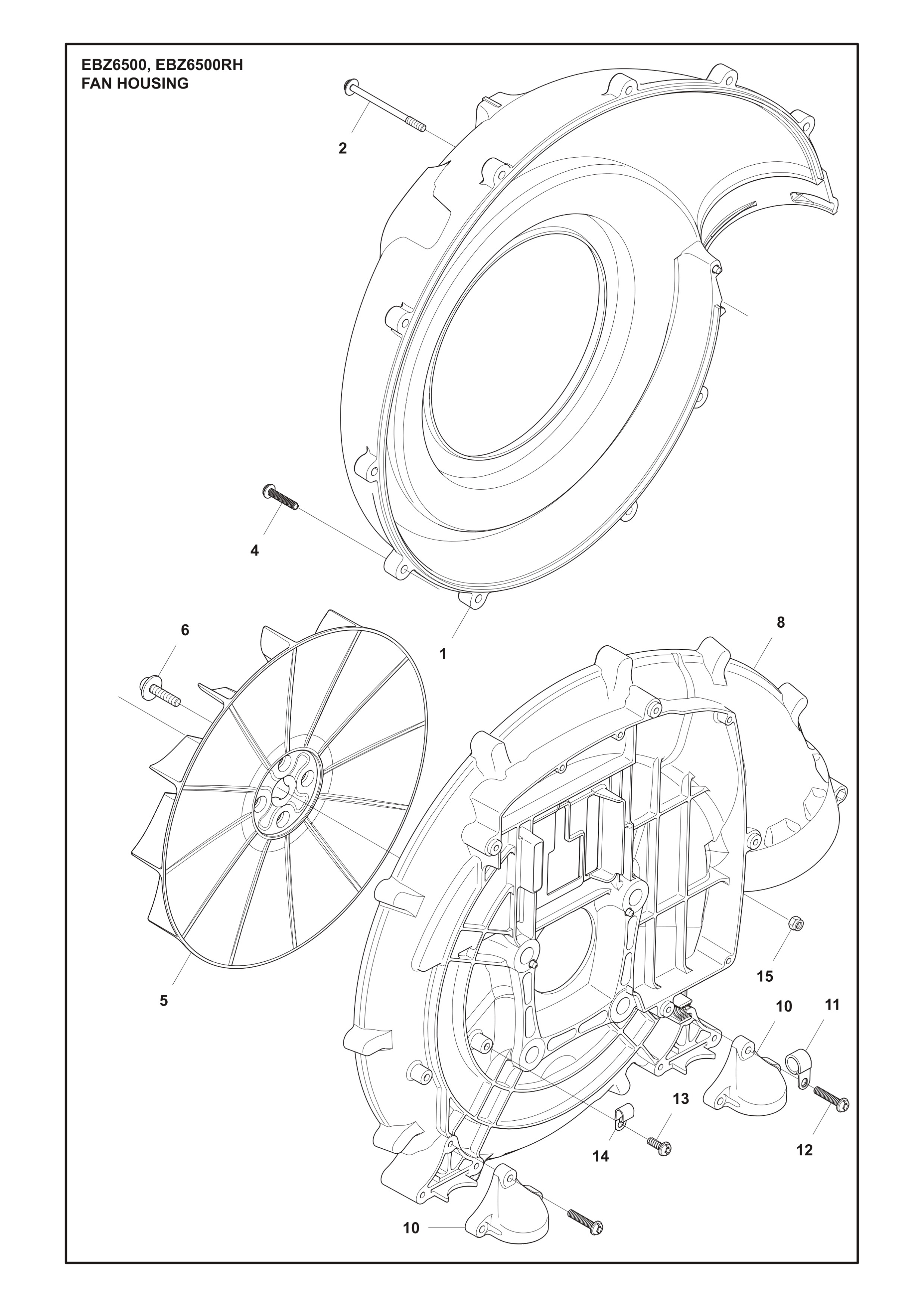

FAN
Choose your preferred view type for the spare parts
Skip drawning
FANipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-area
Article
Art. number






Support content

Manuals & Documents

(2)
Showing the latest version of manual and documents for RedMax EBZ6500RH. For earlier versions, see link below to search all manuals & documents.

Specifications

BLOWER EBZ6500RH US50/CA
966 75 81‑01
Engine

Cylinder displacement

4 cu.inch

Electrode gap

0.03 in

Output shaft power

3.57 hp

Fuel Consumption

422 g/kWh

Fuel tank volume

71.01 fl oz

Idling speed

2,000 rpm

Maximum power speed

6,700 rpm

Spark Plug

NGK CMR7H
BLOWER EBZ6500RH US50/CA
966 75 81‑01
Capacity

Air flow in pipe

631 cfm

Air flow in housing

890 cfm

Air speed (round nozzle)

232 mph

Blowing Force

30 N
BLOWER EBZ6500RH US50/CA
966 75 81‑01
Dimensions

Product size height

19.6 in

Product size length

13.7 in

Tube diameter

2.59 in

Weight

22.5 lbs
BLOWER EBZ6500RH US50/CA
966 75 81‑01
Sound and noise

Sound power level, measured

111 dB(A)

Sound pressure level at operators ear

97.1 dB(A)
