Parts, manuals and support for EBZ7500
All the support you need for EBZ7500. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to EBZ7500 product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair

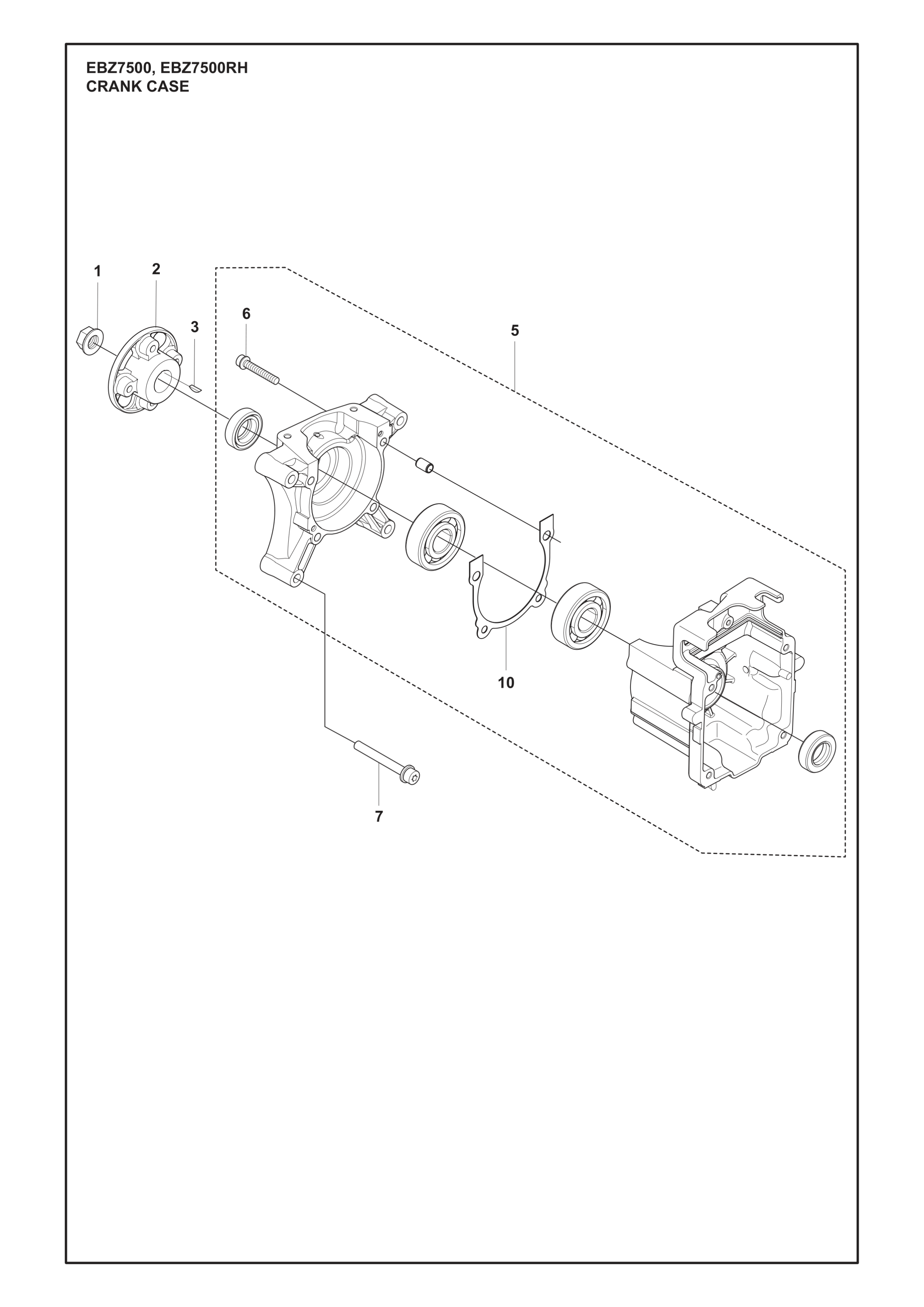

CRANKCASE
Article
Art. number
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for RedMax EBZ7500. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
EBZ7500 966 62 43‑01 | |
|---|---|
Engine | |
Cylinder displacement | 4 cu.inch |
Electrode gap | 0.03 in |
Output shaft power | 3.75 hp |
Fuel Consumption | 413 g/kWh |
Fuel tank volume | 71.01 fl oz |
Idling speed | 2,000 rpm |
Maximum power speed | 7,200 rpm |
Spark Plug | NGK CMR7H |
EBZ7500 966 62 43‑01 | |
|---|---|
Capacity | |
Air flow in pipe | 768 cfm |
Air flow in housing | 972 cfm |
Air speed (round nozzle) | 236 mph |
Blowing Force | 37 N |
Air speed (flat nozzle) | 202 mph |
EBZ7500 966 62 43‑01 | |
|---|---|
Dimensions | |
Product size height | 19.7 in |
Product size length | 14 in |
Tube diameter | 2.83 in |
Weight | 23.4 lbs |
EBZ7500 966 62 43‑01 | |
|---|---|
Sound and noise | |
Sound power level, measured | 112 dB(A) |
Sound pressure level at operators ear | 103 dB(A) |
