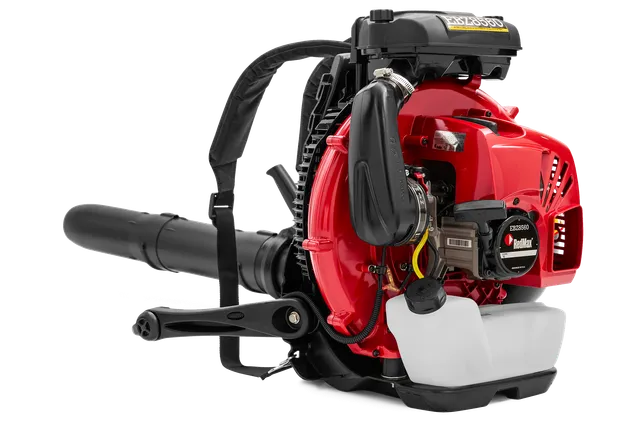

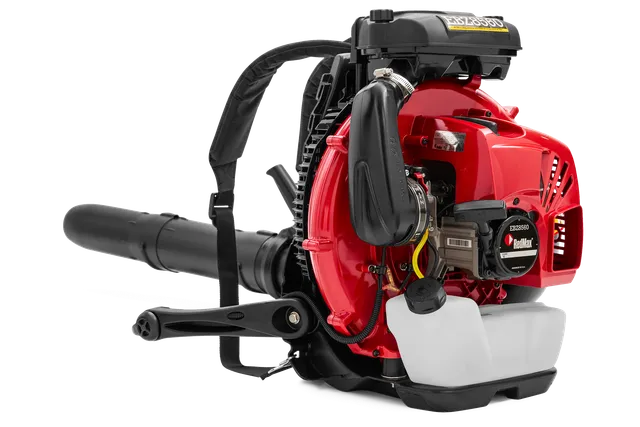

Parts, manuals and support for EBZ8560
All the support you need for EBZ8560. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to EBZ8560 product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
HARNESS
Article
Art. number
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax EBZ8560. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
Left Hand Throttle, "MKIII", NA 970 49 93‑01 | |
|---|---|
Engine | |
Cylinder displacement | 4.6 cu.inch |
Electrode gap | 0.03 in |
Output shaft power | 4.59 hp |
Fuel Consumption | 464 g/kWh |
Fuel tank volume | 77.77 fl oz (US) |
Idling speed | 2,000 rpm |
Maximum power speed | 7,450 rpm |
Spark Plug | NGK CMR7H |
Left Hand Throttle, "MKIII", NA 970 49 93‑01 | |
|---|---|
Capacity | |
Air flow in pipe | 1,000 cfm |
Air flow in housing | 1,200 cfm |
Air speed (round nozzle) | 220 mph |
Blowing Force | 47 N |
Left Hand Throttle, "MKIII", NA 970 49 93‑01 | |
|---|---|
Dimensions | |
Product size height | 21.69 in |
Product size length | 14.09 in |
Tube diameter | 3.386 in |
Weight | 25.5 lbs |
Left Hand Throttle, "MKIII", NA 970 49 93‑01 | |
|---|---|
Sound and noise | |
Sound power level, guaranteed (LWA) | 115 dB(A) |
Sound power level, measured | 113 dB(A) |
Sound pressure level at operators ear | 106 dB(A) |
