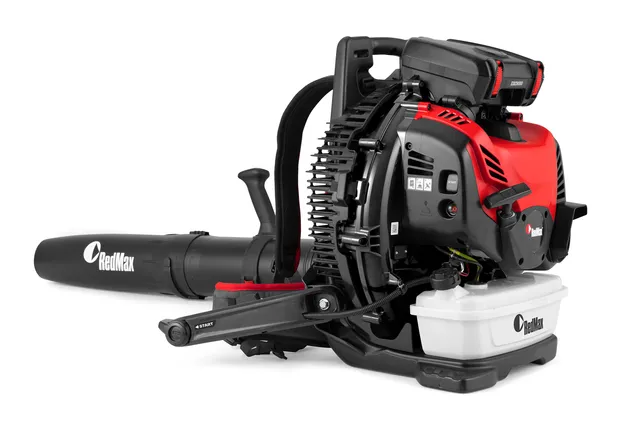

EBZ9000 Backpack blower, Petrol

Parts, manuals and support for EBZ9000

All the support you need for EBZ9000. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax EBZ9000. For earlier versions, see link below to search all manuals & documents.
Operators manual
OM. RedMax EBZ9000, EBZ9000RH. 2023-11
Published: 4/19/2024
3.25 MB,
EN, ES, FR
Specifications

79cc BP blower

Art no: 970 55 07‑01

Engine
79cc BP blower
Art no: 970 55 07‑01
Cylinder displacement4.8 cu.inch
Electrode gap0.026 in
Output shaft power5.5 hp
Fuel consumption395 g/kWh
Fuel tank volume91.3 fl oz (US)
Idling speed2,000 rpm
Maximum power speed7,700 rpm
Spark PlugNGK CMR7H
Capacity
Air flow in pipe1,245 cfm
Air flow in housing1,581 cfm
Air speed (round nozzle)216 mph
Blowing Force56 N
Dimensions
Product size height21.69 in
Product size length14.06 in
Tube diameter3.78 in
Weight26.5 lbs
