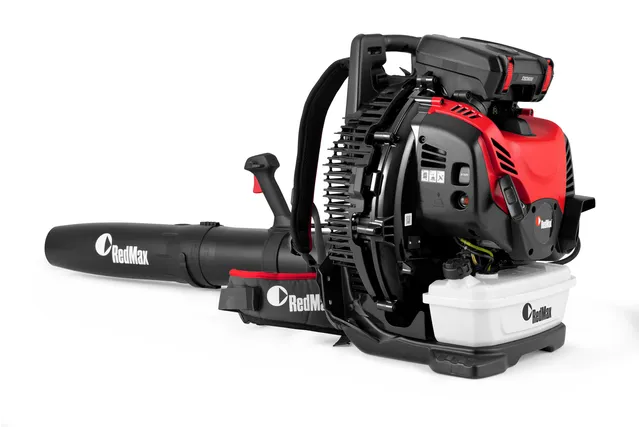

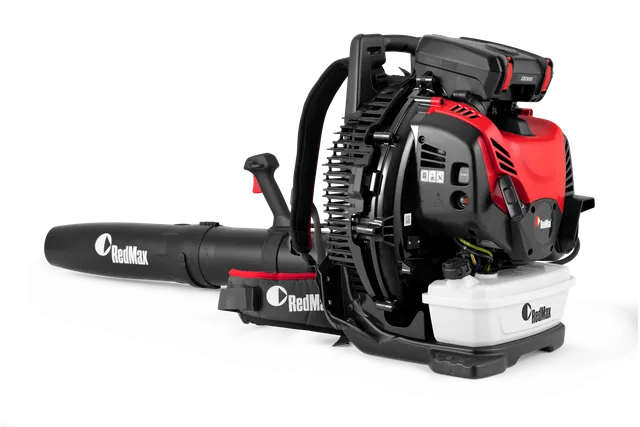

EBZ9000-RH. Side view of a RedMax backpack leaf blower with visible fuel tank and controls.

Leaf Blowers

Parts, manuals and support for EBZ9000-RH

All the support you need for EBZ9000-RH. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to EBZ9000-RH product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

ACCESSORIES
Choose your preferred view type for the spare parts
Skip drawning
ACCESSORIESipl-area
Article
Art. number






Support content

Manuals & Documents

(1)
Showing the latest version of manual and documents for RedMax EBZ9000-RH. For earlier versions, see link below to search all manuals & documents.

Specifications

79cc BP blower
970 55 06‑01
Engine

Cylinder displacement

4.8 cu.inch

Electrode gap

0.026 in

Output shaft power

5.5 hp

Fuel Consumption

395 g/kWh

Fuel tank volume

91.3 fl oz (US)

Idling speed

2,000 rpm

Maximum power speed

7,700 rpm

Spark Plug

NGK CMR7H
79cc BP blower
970 55 06‑01
Capacity

Air flow in pipe

1,245 cfm

Air flow in housing

1,581 cfm

Air speed (round nozzle)

216 mph

Blowing Force

56 N
79cc BP blower
970 55 06‑01
Dimensions

Product size height

21.69 in

Product size length

14.06 in

Tube diameter

3.78 in

Weight

26 lbs
