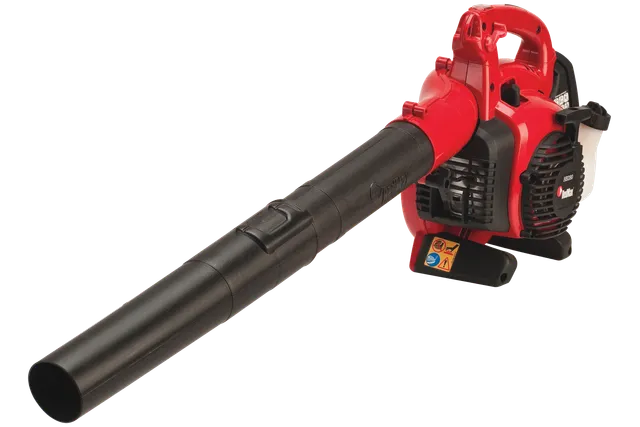

RedMax HB281. Side view of a handheld leaf blower with an extended nozzle.

Leaf Blowers

Parts, manuals and support for HB281

All the support you need for HB281. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to HB281 product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

SERVICE REFERENCE
Choose your preferred view type for the spare parts
Skip drawning
SERVICE REFERENCEipl-areaipl-areaipl-areaipl-areaipl-area
Article
Art. number






Support content

Manuals & Documents

(2)
Showing the latest version of manual and documents for RedMax HB281. For earlier versions, see link below to search all manuals & documents.

Specifications

HB281 Not Vac Capable
967 00 83‑01
Engine

Cylinder displacement

1.7 cu.inch

Electrode gap

0.024 in

Output shaft power

1.1 hp

Engine Family EPA

*PWES.0284BQ

Fuel Consumption

575 g/kWh

Fuel tank volume

18.5 fl oz

Idling speed

3,000 rpm

Maximum power speed

8,000 rpm
HB281 Not Vac Capable
967 00 83‑01
Capacity

Air flow in pipe

425 cfm

Air flow in housing

470 cfm

Air speed

170 mph

Air speed (round nozzle)

170 mph
HB281 Not Vac Capable
967 00 83‑01
Dimensions

Product size height

13.4 in

Product size length

14.9 in

Tube diameter

0 in

Weight

9.4 lbs
HB281 Not Vac Capable
967 00 83‑01
Sound and noise

Sound power level, guaranteed (LWA)

112 dB(A)

Sound power level, measured

109 dB(A)
