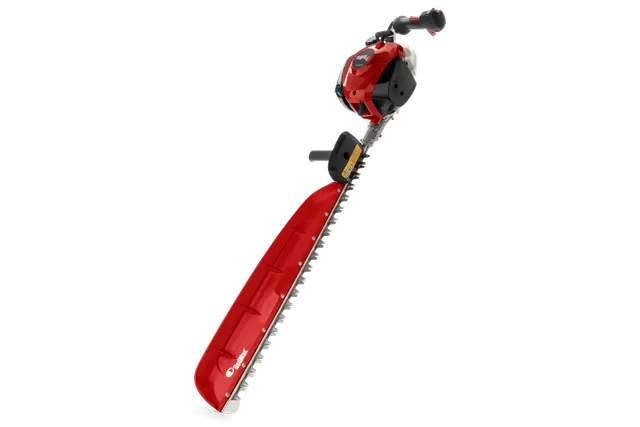

Side view of a hedge trimmer with a long cutting blade.

Hedge trimmers

Parts, manuals and support for HTZ750

All the support you need for HTZ750. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to HTZ750 product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

STARTER
Choose your preferred view type for the spare parts
Skip drawning
STARTERipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-areaipl-area
Article
Art. number






Support content

Manuals & Documents

(2)
Showing the latest version of manual and documents for RedMax HTZ750. For earlier versions, see link below to search all manuals & documents.

Specifications

HTZ750 HEDGE TRIMMER
967 65 96‑01
Engine

Cylinder displacement

1.3 cu.inch

Electrode gap

0.02 in

Fuel tank volume

15.2 fl oz

Idling speed

3,000 rpm

Maximum power speed

7,800 rpm

Output shaft power

0.8 hp

Spark Plug

NGK CMR6A
HTZ750 HEDGE TRIMMER
967 65 96‑01
Capacity

Cutting speed

4,400 cut/min
HTZ750 HEDGE TRIMMER
967 65 96‑01
Vibration

Equivalent vibration level (ahv, eq) front handle

5.8 m/s²

Equivalent vibration level (ahv, eq) rear handle

5.7 m/s²
HTZ750 HEDGE TRIMMER
967 65 96‑01
Equipment

Knife length

30 in
HTZ750 HEDGE TRIMMER
967 65 96‑01
Sound and noise

Sound power level, guaranteed (LWA)

102 dB(A)

Sound pressure level at operators ear

93 dB(A)
HTZ750 HEDGE TRIMMER
967 65 96‑01
Dimensions

Weight

11.2 lbs
