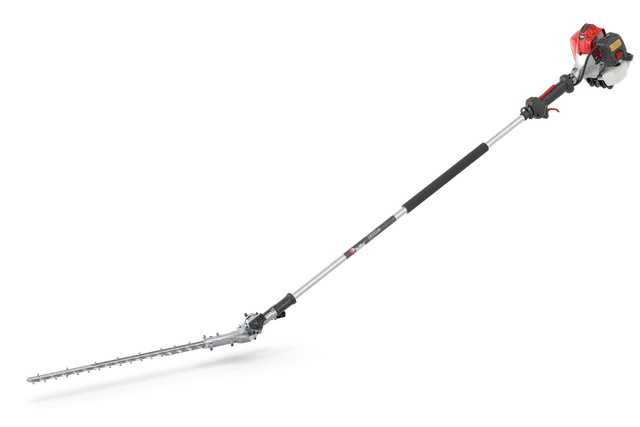

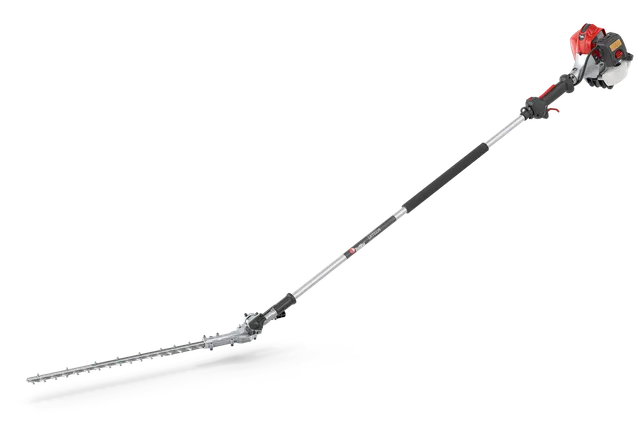

Hedge trimmers

Parts, manuals and support for LRTZ235

All the support you need for LRTZ235. Manuals, spare parts, guides, how-to’s, and more.

Currently available

Choose article number

To show you the right support, choose an article number from this list.

Article number

Support content

(3)

Showing the latest version of manual and documents for RedMax LRTZ235. For earlier versions, see link below to search all manuals & documents.

Engine - Compare specifications across different product articles
Engine	Articulated pole HT Article Number: 970 55 01‑01
Cylinder displacement	1.37 cu.inch
Electrode gap	0.03 in
Fuel tank volume	21.6 fl oz
Idling speed	3,000 rpm
Maximum power speed	8,500 rpm
Output shaft power	0.94 hp
Spark Plug	NGK BPMR8Y

Capacity - Compare specifications across different product articles
Capacity	Articulated pole HT Article Number: 970 55 01‑01
Cutting speed	4,400 cut/min

Vibration - Compare specifications across different product articles
Vibration	Articulated pole HT Article Number: 970 55 01‑01
Equivalent vibration level (ahv, eq) front handle	6.1 m/s²
Equivalent vibration level (ahv, eq) rear handle	5.6 m/s²

Equipment - Compare specifications across different product articles
Equipment	Articulated pole HT Article Number: 970 55 01‑01
Knife length	24 in

Dimensions - Compare specifications across different product articles
Dimensions	Articulated pole HT Article Number: 970 55 01‑01
Weight	13.5 lbs
