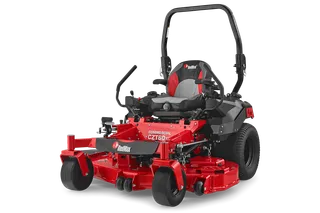

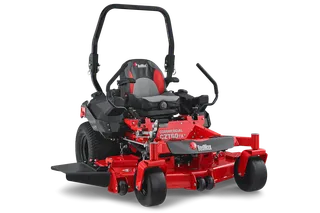

Redmax CZT60TX

Part number: 970641101
Experience the ultimate in cutting power with the RedMax CZT60TX zero-turn mower. This commercial quality mower delivers maximum performance with the high horsepower 38.5 HP Kawasaki FX1000 EFI engine. By limiting RPM droop, the engine maintains high blade speeds, even during heavy use. Built to last with a 60" 7-gauge deck, heavy-duty cast iron blade spindles and a welded steel chassis.
Product specification
  • Motor/engine manufacturer: Kawasaki
  • Motor/engine model: FX1000V EFI
  • See all specs

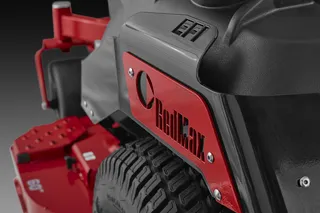

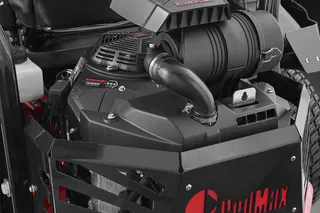

Kawasaki FX1000V EFI - Studio

Kawasaki Fuel Injected Engine

The Kawasaki FX1000 EFI engine combines big displacement with an integrated electronic throttle control, to give stable torque delivery even in heavy cutting. The result is higher productivity without sacrificing cut quality.

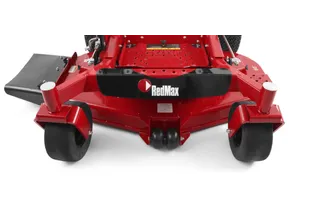

RedMax CZTX High-Performance Commercial Deck

Cutting deck

The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal. This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.

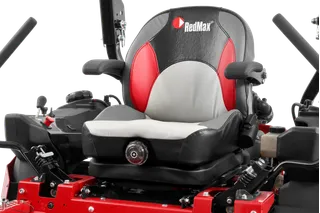

RedMax Premium Suspension Seat

Premium Suspension seat

Deep cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. Additional full suspension system gives a smoother ride on rough terrain during long working hours.

Hydro Gear ZT 5400 Transmission

Commercial Duty Drive System

The Hydro-Gear ZT-5400 series transmission offers smooth operation and long life durability.

RedMax CZTX Front Foot Plate - Closed

Heavy Duty Frame

11 Gauge, 2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.

RedMax Easy Fill Fuel Tank - Cap Mounted

Large Fuel Capacity

Dual fuel tanks with 10 gallon total capacity allows for all day running. Oversized fuel caps reduce spillage.

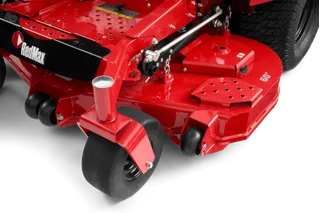

RedMax CZTX Front Castor Assembly

Extreme Duty Front Casters

Extreme duty front casters feature tapered roller bearings, 1 1/4" shafts, 1/2" thick yokes and flat fee front tires for maximum durability

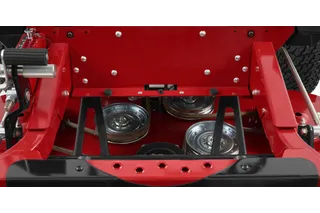

RedMax CZTX Foot Plate Area - Open

Easy Cutting Deck Access

Removable foot pan for easy access to deck belts, pulleys, spindle service and clean-up. (CZT60X shown)

RedMax CZTX Deck Lift System

Convenient Deck Lift System

The robust, pedal-operated deck lift system is spring assited for quick, hands-free operation. Deck height is adjustable to 17 Positions.

RedMax Ogura Electric Clutch

Adjustable Heavy Duty Clutch

The commercial duty electric clutch is adjustable for wear to prolong the useful life.

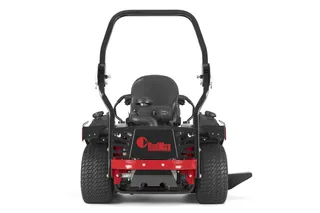

RedMax CZTX Roll Over Protection (ROPS)

Roll Over Protection System (ROPS)

The roll over protection system helps protect the user and can be lowered in areas with low-hanging branches.

RedMax CZTX Steering Levers

Adjustable steering levers

Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.

P-ZT Aluminum spindle

Cast iron spindles

10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.

RedMax CZTX Top View Showing Serviceability

Convenient Service Access

The open chassis design offers excellent service access. Open access on either side of the engine simplifies maintenance.

RedMax Rubber Discharge Shield

Rubber Discharge Shield

The rubber shield is flexible to avoid damage due to accidental impacts

CZT60TX Zero turn mower, Control

Ergonomic Control Panel

The ergonomic control panel offers better visibility and places everything conveniently at your fingertips.



Speed forward max
12 mph

Cutting Deck

Cutting width
60 in
Cutting deck type
7-gauge fabricated
Cutting methods
Collect/Mulch/Side discharge
Cutting deck material
Deck thickness
7 gauge
Blade engagement
Electric clutch
3 pcs
Anti-scalp wheels


Base machine, length
81 in
Base machine, height
46 in
Base machine, width
53.5 in
1342 lbs

Drive System

Transmission manufacturer
Transmission model
ZT 5400


Motor/engine manufacturer
Engine name
FX Series V-Twin
Cylinder displacement
61 cu.inch
Engine cooling
Power/fuel type
Engine lubrication type
Full pressure with oil filter
Fuel tank volume (with reserve)
10 gal (US)
Fuel tank location
Side (Dual)


Seat back height
Cup holder
Seat type
Premium, suspension
