1/1
1.37 cu.inch
Cylinder displacement
0.94 hp
Output shaft power
10.14 lbs
Weight (excl. cutting equipment)
TRZ230S

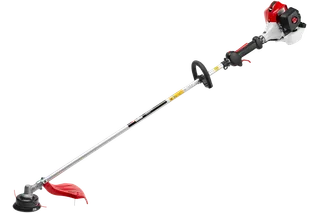

This RedMax trimmer is a powerful performer for homeowners as well as commercial contractors. The TRZ230S features a 22.5 cc, 0.94 horsepower engine and its light weight makes the trimmer extra portable for landscaping use. A Strato-Charged engine ensures up to 20% better fuel economy than a traditional two-stroke engine while increasing torque and improving emissions. A steel drive shaft with 7-point splined engagement ensures durability and quick acceleration.
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Engine | TRZ230S Article Number: 967 19 41‑01 |
|---|---|
Cylinder displacement | 1.37 cu.inch |
Clutch engagement speed (±120) | 4,000 rpm |
Electrode gap | 0.03 in |
Fuel Consumption | 450 g/kWh |
Fuel tank volume | 21.64 fl oz |
Idling speed | 3,000 rpm |
Maximum rpm output shaft | 8,208 rpm |
Output shaft power | 0.94 hp |
Spark Plug | NGK BPMR8Y |
Torque, max. | 1 Nm |
Torque, max. at rpm | 6,500 rpm |
| Product data | TRZ230S Article Number: 967 19 41‑01 |
|---|---|
Drive gear angle | 60 ° |
Gear ratio | 1.462 |
| Emission | TRZ230S Article Number: 967 19 41‑01 |
|---|---|
Exhaust emissions (CO average) CARB | 495.18 g/kWh |
| Dimensions | TRZ230S Article Number: 967 19 41‑01 |
|---|---|
Weight (excl. cutting equipment) | 10.14 lbs |
Reviews
Reviews
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for TRZ230S can be found in the product support.
Product support for TRZ230S
