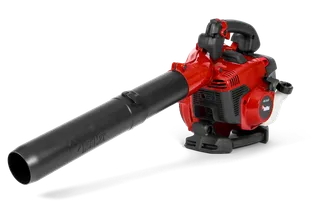

RedMax HBZ260R

1.55 cu.inch

459 cfm

9.5 lbs

Specifications

BLOWER HBZ260R Article Number: 967 08 96‑01
Engine	BLOWER HBZ260R Article Number: 967 08 96‑01
Cylinder displacement	1.55 cu.inch
Electrode gap	0.026 in
Power output	1.14 hp
Engine Family CARB	MHQZS.0254HE
Engine Family EPA	GHQZS.0254GQ
Fuel consumption	550 g/kWh
Fuel tank volume	0.45 fl oz
Idling speed	3,000 rpm
Maximum power speed	7,300 rpm
Spark Plug	NGK BPMR8Y
Capacity
Air flow in pipe	459 cfm
Air flow in housing	493 cfm
Air speed (round nozzle)	157 mph
Blowing Force	15 N
Dimensions
Product size height	13.78 in
Product size length	11.02 in
Tube diameter	2.68 in
Tube length	18.74 in
Weight	9.5 lbs
Sound and noise
Sound power level, guaranteed (LWA)	106 dB(A)
Sound power level, measured	105 dB(A)
Sound pressure level at operators ear	91 dB(A)

Owner support

Manuals, handbooks, spare parts, guides, and related information for HBZ260R can be found in the product support.
