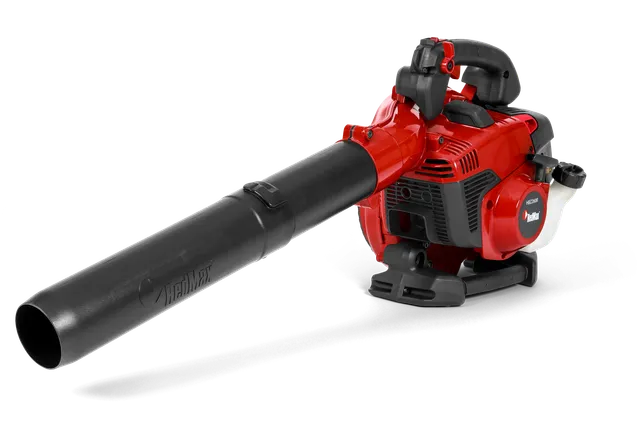

RedMax HBZ260R. Side view of a handheld leaf blower with ergonomic handle and nozzle.

Leaf Blowers

Parts, manuals and support for HBZ260R

All the support you need for HBZ260R. Manuals, spare parts, guides, how-to’s, and more.

Currently available
Go to HBZ260R product page
Choose article number
To show you the right support, choose an article number from this list.

Spare parts

Choose the part you wish to repair

TUBE
Choose your preferred view type for the spare parts
Skip drawning
TUBEipl-areaipl-area
Article
Art. number






Support content

Manuals & Documents

(1)
Showing the latest version of manual and documents for RedMax HBZ260R. For earlier versions, see link below to search all manuals & documents.

Specifications

BLOWER HBZ260R
967 08 96‑01
Engine

Cylinder displacement

1.55 cu.inch

Electrode gap

0.026 in

Output shaft power

1.08 hp

Engine Family EPA

GHQZS.0254GQ

Fuel Consumption

550 g/kWh

Fuel tank volume

15.2 fl oz

Idling speed

3,000 rpm

Maximum power speed

7,300 rpm

Spark Plug

NGK BPMR8Y
BLOWER HBZ260R
967 08 96‑01
Capacity

Air flow in pipe

459 cfm

Air flow in housing

493 cfm

Air speed (round nozzle)

157 mph

Blowing Force

15 N
BLOWER HBZ260R
967 08 96‑01
Dimensions

Product size height

13.78 in

Product size length

11.02 in

Tube diameter

2.68 in

Tube length

18.74 in

Weight

9.5 lbs
BLOWER HBZ260R
967 08 96‑01
Sound and noise

Sound power level, guaranteed (LWA)

106 dB(A)

Sound power level, measured

105 dB(A)

Sound pressure level at operators ear

91 dB(A)
