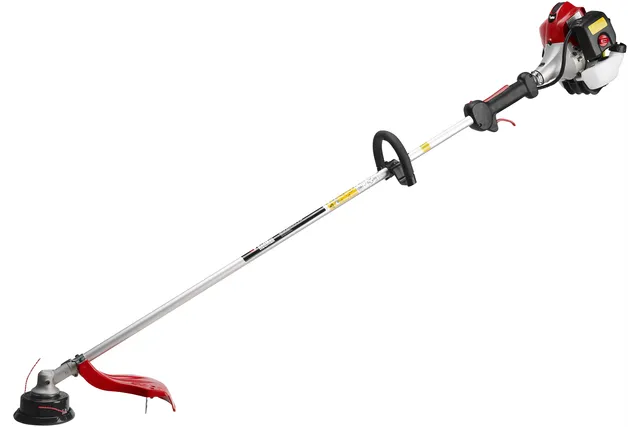

Parts, manuals and support for BCZ230TS
All the support you need for BCZ230TS. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to BCZ230TS product pageChoose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
DRIVE
Article
Art. number
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for RedMax BCZ230TS. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
BCZ230TS 967 19 42‑02 | |
|---|---|
Engine | |
Cylinder displacement | 1.37 cu.inch |
Clutch engagement speed (±120) | 4,000 rpm |
Electrode gap | 0.03 in |
Fuel Consumption | 450 g/kWh |
Fuel tank volume | 21.64 fl oz |
Fuel tank volume | 0.64 l |
Idling speed | 3,000 rpm |
Maximum rpm output shaft | 8,208 rpm |
Output shaft power | 0.94 hp |
Spark Plug | NGK BPMR8Y |
Torque, max. | 1 Nm |
Torque, max. at rpm | 6,500 rpm |
BCZ230TS 967 19 42‑02 | |
|---|---|
Product data | |
Drive gear angle | 60 ° |
BCZ230TS 967 19 42‑02 | |
|---|---|
Emission | |
Exhaust emissions (CO average) CARB | 495.18 g/kWh |
BCZ230TS 967 19 42‑02 | |
|---|---|
Dimensions | |
Weight (excl. cutting equipment) | 10.14 lbs |
