Trimmers

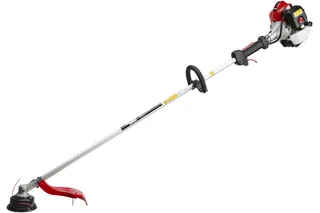

RedMax BCZ230TS




1.37 cu.inch
Cylinder displacement
0.94 hp
Power output
10.14 lbs
Weight (excl. cutting equipment)







BCZ230TS

A light weight yet heavy duty commercial trimmer designed to produce additional torque for extreme conditions. The BCZ230TS provides 0.94 horsepower while only weighing 10.1 pounds. Couple this excellent power-to-weight ratio with the Strato-Charged engine and the steel shaft and you have one of the most fuel efficient, durable, and light weight trimmers on the market.

Specifications

BCZ230TS

Article Number: 967 19 42‑02

Engine
BCZ230TS
Article Number: 967 19 42‑02
Cylinder displacement1.37 cu.inch
Clutch engagement speed (±120)4,000 rpm
Electrode gap0.03 in
Fuel consumption450 g/kWh
Fuel tank volume21.64 fl oz
Idling speed3,000 rpm
Maximum rpm output shaft8,208 rpm
Power output0.94 hp
Spark PlugNGK BPMR8Y
Torque, max.1 Nm
Torque, max. at rpm6,500 rpm
Product data
Drive gear angle60 °
Emission
Exhaust emissions (CO average) CARB495.18 g/kWh
Dimensions
Weight (excl. cutting equipment)10.14 lbs
Owner support
Manuals, handbooks, spare parts, guides, and related information for BCZ230TS can be found in the product support.
Product support for BCZ230TS
