Hedge trimmers

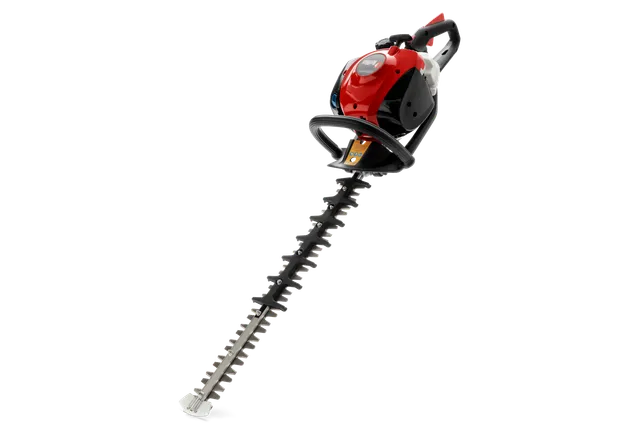

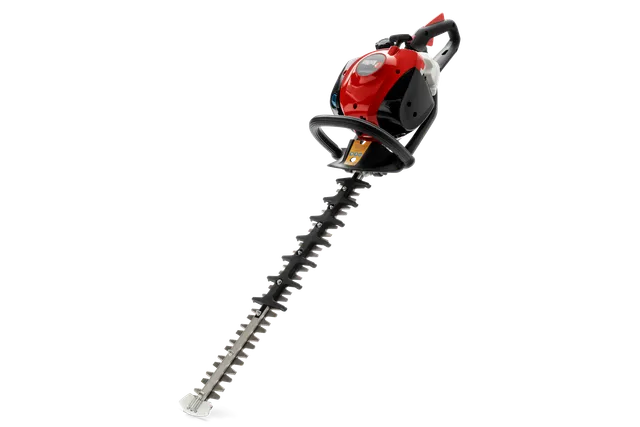

Parts, manuals and support for CHTZ600R

All the support you need for CHTZ600R. Manuals, spare parts, guides, how-to’s, and more.

Currently available

Choose article number

To show you the right support, choose an article number from this list.

Article number

Support content

(2)

Showing the latest version of manual and documents for RedMax CHTZ600R. For earlier versions, see link below to search all manuals & documents.

Engine - Compare specifications across different product articles
Engine	CHTZ600R HEDGE TRIMMER Article Number: 967 65 94‑01
Cylinder displacement	1.3 cu.inch
Electrode gap	0.02 in
Fuel tank volume	15.2 fl oz
Idling speed	3,000 rpm
Output shaft power	0.8 hp
Spark Plug	NGK CMR6A

Capacity - Compare specifications across different product articles
Capacity	CHTZ600R HEDGE TRIMMER Article Number: 967 65 94‑01
Cutting speed	3,200 cut/min

Vibration - Compare specifications across different product articles
Vibration	CHTZ600R HEDGE TRIMMER Article Number: 967 65 94‑01
Equivalent vibration level (ahv, eq) front handle	2.8 m/s²
Equivalent vibration level (ahv, eq) rear handle	1.3 m/s²

Equipment - Compare specifications across different product articles
Equipment	CHTZ600R HEDGE TRIMMER Article Number: 967 65 94‑01
Knife length	24 in

Sound and noise - Compare specifications across different product articles
Sound and noise	CHTZ600R HEDGE TRIMMER Article Number: 967 65 94‑01
Sound power level, guaranteed (LWA)	102 dB(A)
Sound pressure level at operators ear (LpA)	98 dB(A)

Dimensions - Compare specifications across different product articles
Dimensions	CHTZ600R HEDGE TRIMMER Article Number: 967 65 94‑01
Weight	11 lbs
