Zero Turn Mowers
Parts, manuals and support for CZTE60
All the support you need for CZTE60. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to CZTE60 product pageChoose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for RedMax CZTE60. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications

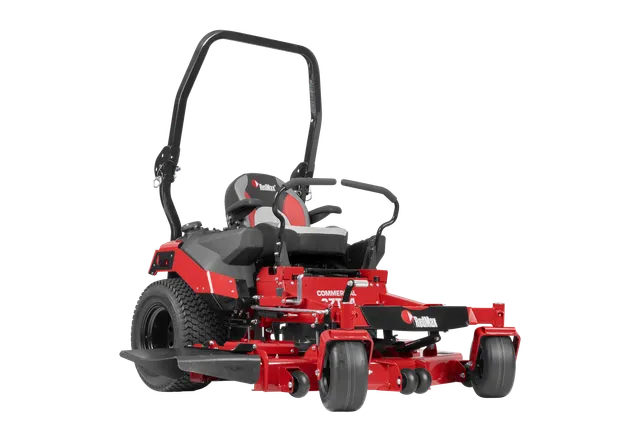

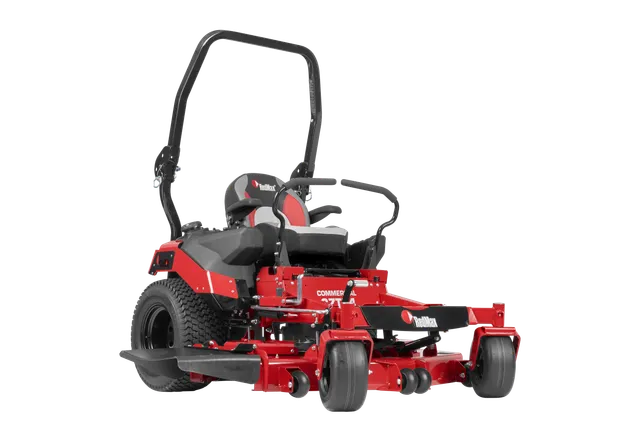

| Engine | CZTE60 Professional Zero Turn Mower Article Number: 970 53 50‑01 |
|---|---|
Cylinder displacement | 44.3 cu.inch |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure with oil filter |
Engine name | FS Series V-Twin |
Fuel tank location | Side (Dual) |
Fuel tank volume (with reserve) | 10 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
| Equipment | CZTE60 Professional Zero Turn Mower Article Number: 970 53 50‑01 |
|---|---|
Cup holder | Yes |
Seat back height | High |
Seat type | Professional |
| Cutting deck | CZTE60 Professional Zero Turn Mower Article Number: 970 53 50‑01 |
|---|---|
Anti-scalp wheels | 4 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 10-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 60 in |
Deck thickness | 10 gauge |
| Capacity | CZTE60 Professional Zero Turn Mower Article Number: 970 53 50‑01 |
|---|---|
Speed forward max | 10 mph |
Speed forward min | 0 mph |
| Drive system | CZTE60 Professional Zero Turn Mower Article Number: 970 53 50‑01 |
|---|---|
Transmission manufacturer | Parker |
Transmission model | HTE10 |
| Dimensions | CZTE60 Professional Zero Turn Mower Article Number: 970 53 50‑01 |
|---|---|
Base machine, height | 49.75 in |
Base machine, length | 76.5 in |
Base machine, width | 49.5 in |
Weight | 959 lbs |
