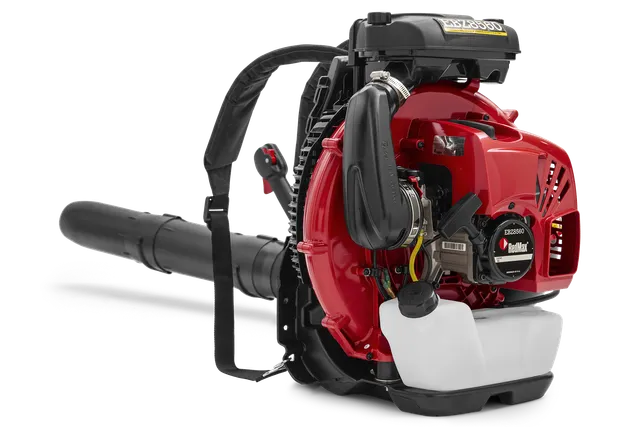

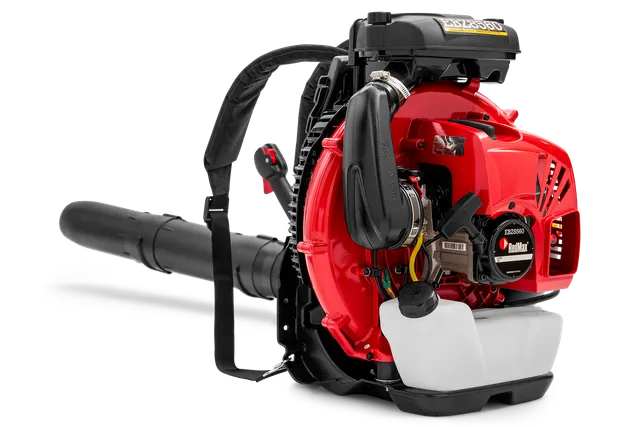

Parts, manuals and support for EBZ8560-RH

All the support you need for EBZ8560-RH. Manuals, spare parts, guides, how-to’s, and more.

Currently available

Choose article number

To show you the right support, choose an article number from this list.

Article number

Support content

(1)

Showing the latest version of manual and documents for RedMax EBZ8560-RH. For earlier versions, see link below to search all manuals & documents.

Engine - Compare specifications across different product articles
Engine	Right Hand Throttle, "MKIII", NA Article Number: 970 49 94‑01
Cylinder displacement	4.6 cu.inch
Electrode gap	0.03 in
Output shaft power	4.59 hp
Fuel Consumption	464 g/kWh
Fuel tank volume	77.77 fl oz (US)
Idling speed	2,000 rpm
Maximum power speed	7,450 rpm
Spark Plug	NGK CMR7H

Capacity - Compare specifications across different product articles
Capacity	Right Hand Throttle, "MKIII", NA Article Number: 970 49 94‑01
Air flow in pipe	1,000 cfm
Air flow in housing	1,200 cfm
Air speed (round nozzle)	220 mph
Blowing Force	47 N

Dimensions - Compare specifications across different product articles
Dimensions	Right Hand Throttle, "MKIII", NA Article Number: 970 49 94‑01
Product size height	21.69 in
Product size length	14.09 in
Tube diameter	3.386 in
Weight	25.4 lbs

Sound and noise - Compare specifications across different product articles
Sound and noise	Right Hand Throttle, "MKIII", NA Article Number: 970 49 94‑01
Sound power level, guaranteed (LWA)	115 dB(A)
Sound power level, measured	113 dB(A)
Sound pressure level at operators ear (LpA)	106 dB(A)
