Zero Turn Mowers

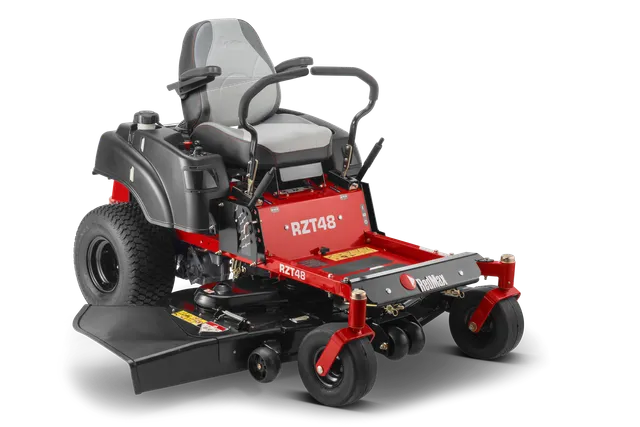

Parts, manuals and support for RZT48
All the support you need for RZT48. Manuals, spare parts, guides, how-to’s, and more.
Currently available
Go to RZT48 product pageChoose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents
(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RedMax RZT48. For earlier versions, see link below to search all manuals & documents.
Specifications
Specifications
| Engine | RZT48 ZERO TURN 23 HP, 48", Kawasaki Article Number: 967 67 20‑01 |
|---|---|
Cylinder displacement | 44.3 cu.inch |
Cylinders | 2 |
Engine cooling | Air |
Engine lubrication type | Full pressure with oil filter |
Engine name | FR Series |
Fuel tank location | Side (Single) |
Fuel tank volume (with reserve) | 3.5 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
| Equipment | RZT48 ZERO TURN 23 HP, 48", Kawasaki Article Number: 967 67 20‑01 |
|---|---|
Cup holder | Yes |
Seat back height | High |
Seat spring | Yes |
Seat type | 18" high back |
| Cutting deck | RZT48 ZERO TURN 23 HP, 48", Kawasaki Article Number: 967 67 20‑01 |
|---|---|
Anti-scalp wheels | 3 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 10-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 48 in |
Deck thickness | 10 gauge |
| Capacity | RZT48 ZERO TURN 23 HP, 48", Kawasaki Article Number: 967 67 20‑01 |
|---|---|
Speed forward max | 6.5 mph |
Speed forward min | 0 mph |
| Drive system | RZT48 ZERO TURN 23 HP, 48", Kawasaki Article Number: 967 67 20‑01 |
|---|---|
Fan-cooled pumps | Yes |
Transmission manufacturer | Hydro-Gear |
Transmission model | ZT-2200 |
| Dimensions | RZT48 ZERO TURN 23 HP, 48", Kawasaki Article Number: 967 67 20‑01 |
|---|---|
Tire size, front Diameter | 11 in |
Tire size, front Width | 5 in |
Base machine, height | 40 in |
Base machine, length | 75 in |
Base machine, width | 43.75 in |
Weight | 610 lbs |
