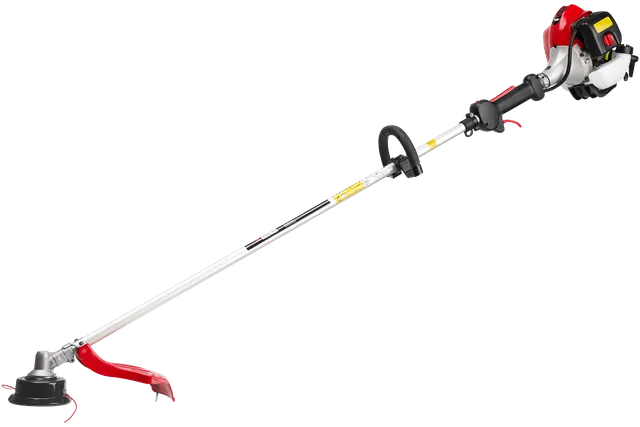

BCZ260S

Trimmers

Parts, manuals and support for BCZ260S

All the support you need for BCZ260S. Manuals, spare parts, guides, how-to’s, and more.

Choose article number
To show you the right support, choose an article number from this list.

Support content

Manuals & Documents

(1)
Showing the latest version of manual and documents for RedMax BCZ260S. For earlier versions, see link below to search all manuals & documents.

Specifications

Engine - Compare specifications across different product articles
Engine
BCZ260S
Article Number: 967 19 43‑01

Cylinder displacement

1.55 cu.inch

Clutch engagement speed (±120)

4,000 rpm

Electrode gap

0.03 in

Fuel Consumption

450 g/kWh

Fuel tank volume

22.32 fl oz

Idling speed

3,000 rpm

Maximum rpm output shaft

8,208 rpm

Output shaft power

1.27 hp

Spark Plug

NGK BPMR8Y

Torque, max.

1.24 Nm

Torque, max. at rpm

7,000 rpm
Product data - Compare specifications across different product articles
Product data
BCZ260S
Article Number: 967 19 43‑01

Drive gear angle

60 °

Gear ratio

1.462
Emission - Compare specifications across different product articles
Emission
BCZ260S
Article Number: 967 19 43‑01

Exhaust emissions (CO average) CARB

354.3 g/kWh
Dimensions - Compare specifications across different product articles
Dimensions
BCZ260S
Article Number: 967 19 43‑01

Weight (excl. cutting equipment)

10.8 lbs
