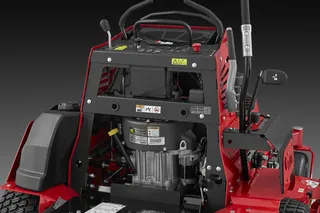

Kawasaki
Motor/engine manufacturer
Kawasaki
Engine brand

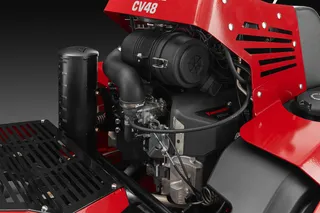

FX 751V
Motor/engine model
CV48

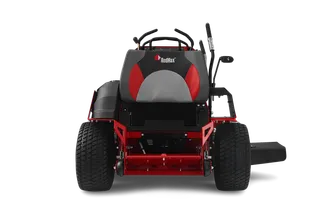

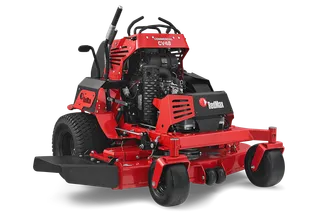

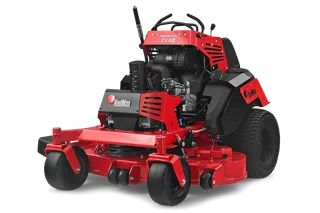

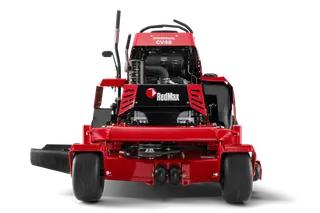

The RedMax CV series stand-on mower represents extreme efficiency in commercial mowing. With a compact footprint, landscapers can arrange more landscaping products on their truck or trailer. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver long lasting operation in any commercial application.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Engine | CV48 ZERO TURN 2023 CV48 Article Number: 970 65 89‑01 |
|---|---|
Cylinder displacement | 52 cu.inch |
Cylinders | 2 |
Engine lubrication type | Full pressure with oil filter |
Engine name | FX Series |
Fuel tank location | Side (Single) |
Fuel tank volume (with reserve) | 7 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
| Equipment | CV48 ZERO TURN 2023 CV48 Article Number: 970 65 89‑01 |
|---|---|
Cup holder | No |
Seat spring | No |

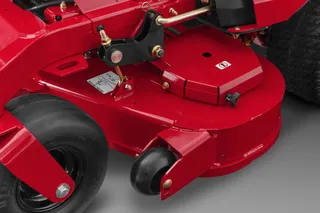

| Cutting deck | CV48 ZERO TURN 2023 CV48 Article Number: 970 65 89‑01 |
|---|---|
Anti-scalp wheels | 3 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 48 in |
Deck thickness | 7 gauge |
| Capacity | CV48 ZERO TURN 2023 CV48 Article Number: 970 65 89‑01 |
|---|---|
Speed forward max | 10 mph |
| Drive system | CV48 ZERO TURN 2023 CV48 Article Number: 970 65 89‑01 |
|---|---|
Transmission manufacturer | Parker |
Transmission model | HP1/DL |
| Dimensions | CV48 ZERO TURN 2023 CV48 Article Number: 970 65 89‑01 |
|---|---|
Base machine, height | 48 in |
Base machine, length | 57 in |
Base machine, width | 47 in |
Weight | 1,140 lbs |
