1/9
Kawasaki
Motor/engine manufacturer
Kawasaki
Engine brand
FX 751V
Motor/engine model
CV54

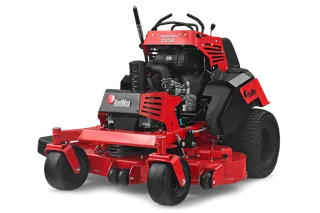

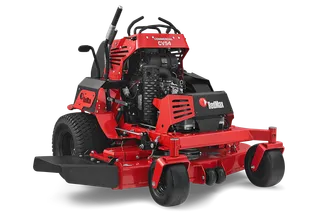

The RedMax CV series stand-on mower represents extreme efficiency in commercial mowing. With a compact footprint, landscapers can arrange more landscaping products on their truck or trailer. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver long lasting operation in any commercial application.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare| Engine | CV54 ZERO TURN 2023 CV54 Article Number: 970 65 90‑01 |
|---|---|
Cylinder displacement | 52 cu.inch |
Cylinders | 2 |
Engine lubrication type | Full pressure with oil filter |
Engine name | FX Series |
Fuel tank location | Side (Single) |
Fuel tank volume (with reserve) | 7 gal (US) |
Engine brand | Kawasaki |
Motor/engine manufacturer | Kawasaki |
Power/fuel type | Gasoline |
| Equipment | CV54 ZERO TURN 2023 CV54 Article Number: 970 65 90‑01 |
|---|---|
Cup holder | No |
Seat spring | No |
| Cutting deck | CV54 ZERO TURN 2023 CV54 Article Number: 970 65 90‑01 |
|---|---|
Anti-scalp wheels | 3 |
Blade engagement | Electric clutch |
Blades | 3 pcs |
Cutting deck material | Steel |
Cutting deck type | 7-gauge fabricated |
Cutting methods | Collect/Mulch/Side discharge |
Cutting width | 54 in |
Deck thickness | 7 gauge |
| Capacity | CV54 ZERO TURN 2023 CV54 Article Number: 970 65 90‑01 |
|---|---|
Speed forward max | 10 mph |
| Drive system | CV54 ZERO TURN 2023 CV54 Article Number: 970 65 90‑01 |
|---|---|
Transmission manufacturer | Parker |
Transmission model | HP1/DL |
| Dimensions | CV54 ZERO TURN 2023 CV54 Article Number: 970 65 90‑01 |
|---|---|
Base machine, height | 48 in |
Base machine, length | 57 in |
Base machine, width | 47 in |
Weight | 1,176 lbs |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for CV54 can be found in the product support.
Product support for CV54
