Trimmers

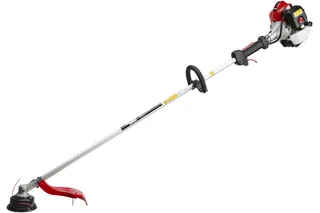

RedMax BCZ230TS












1.37 cu.inch
Cylinder displacement
0.94 hp
Output shaft power
10.14 lbs
Weight (excl. cutting equipment)

BCZ230TS

A light weight yet heavy duty commercial trimmer designed to produce additional torque for extreme conditions. The BCZ230TS provides 0.94 horsepower while only weighing 10.1 pounds. Couple this excellent power-to-weight ratio with the Strato-Charged engine and the steel shaft and you have one of the most fuel efficient, durable, and light weight trimmers on the market.

Specifications

Compare specifications and features with similar Husqvarna products.
Compare
BCZ230TS
967 19 42‑02
Engine

Cylinder displacement

1.37 cu.inch

Clutch engagement speed (±120)

4,000 rpm

Electrode gap

0.03 in

Fuel Consumption

450 g/kWh

Fuel tank volume

21.64 fl oz

Idling speed

3,000 rpm

Maximum rpm output shaft

8,208 rpm

Output shaft power

0.94 hp

Spark Plug

NGK BPMR8Y

Torque, max.

1 Nm

Torque, max. at rpm

6,500 rpm
BCZ230TS
967 19 42‑02
Product data

Drive gear angle

60 °
BCZ230TS
967 19 42‑02
Emission

Exhaust emissions (CO average) CARB

495.18 g/kWh
BCZ230TS
967 19 42‑02
Dimensions

Weight (excl. cutting equipment)

10.14 lbs

Owner support

Manuals, handbooks, spare parts, guides, and related information for BCZ230TS can be found in the product support.
Product support for BCZ230TS
